Grill Cabin 9.2 with an extension

---

Grill cabin 9.2 m2 with extension Product sheet HotBarrel

---

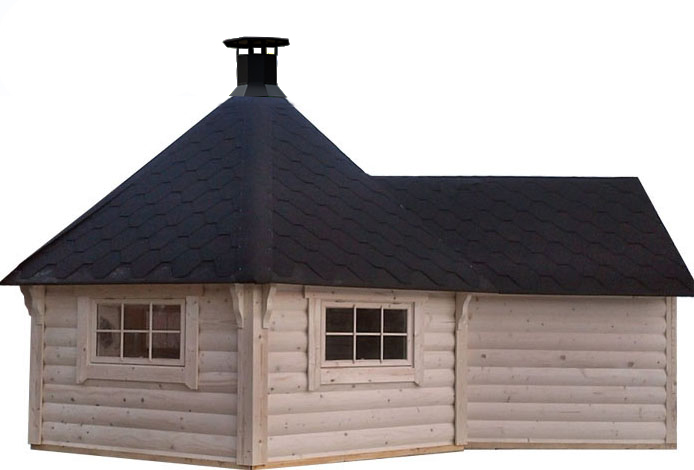

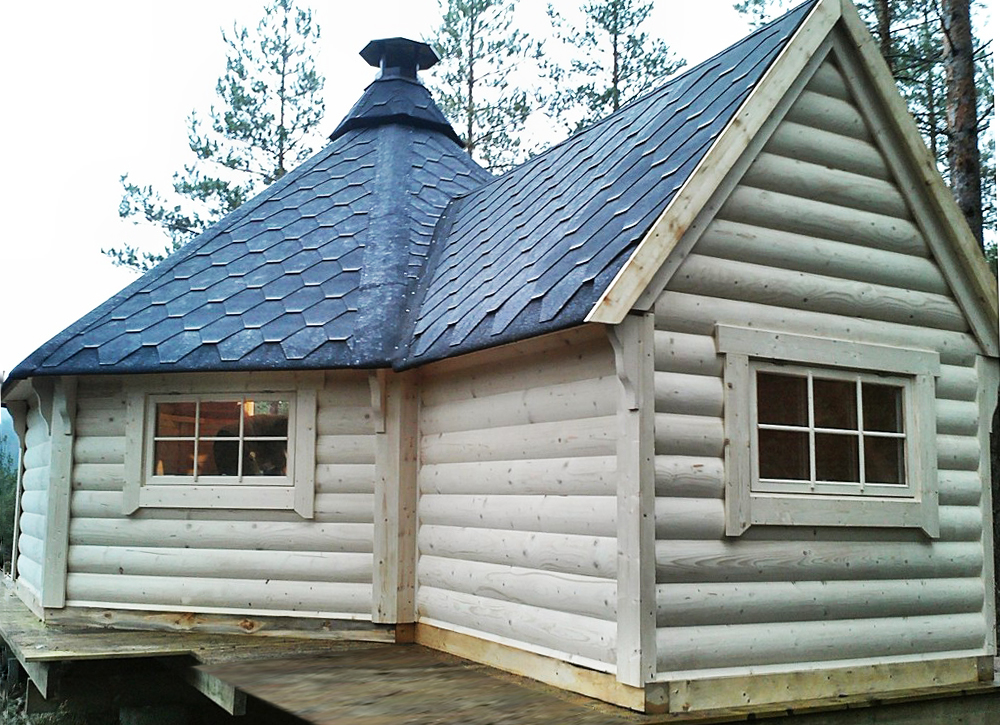

High-quality materials ensure the longevity of a grill house and easy use. Cabin walls are made of rounded spruce boards with dimensions 45 x 145 mm. A roof is covered with bitumen shingles (colour can be selected), and there are four double glazed windows, two of which open. Besides that, doors are decorated with an original hexagonal window. Also, there are four benches in the cabin; two of these benches easily transform into sleeping benches: just turn over the additional board. The floor is easily assembled from separate components.

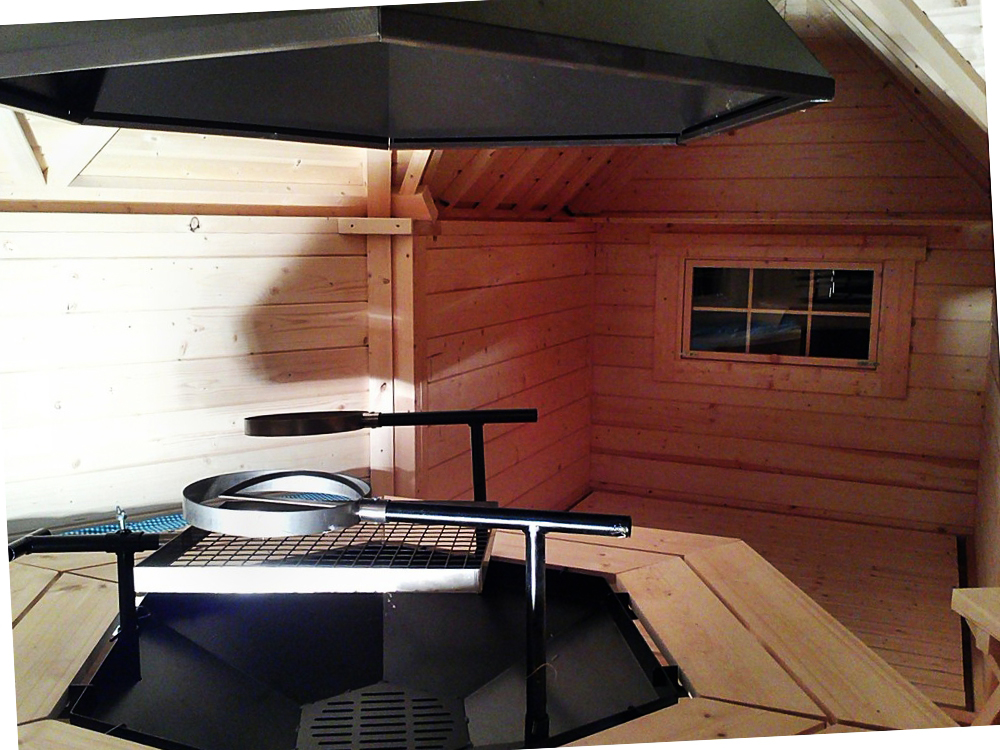

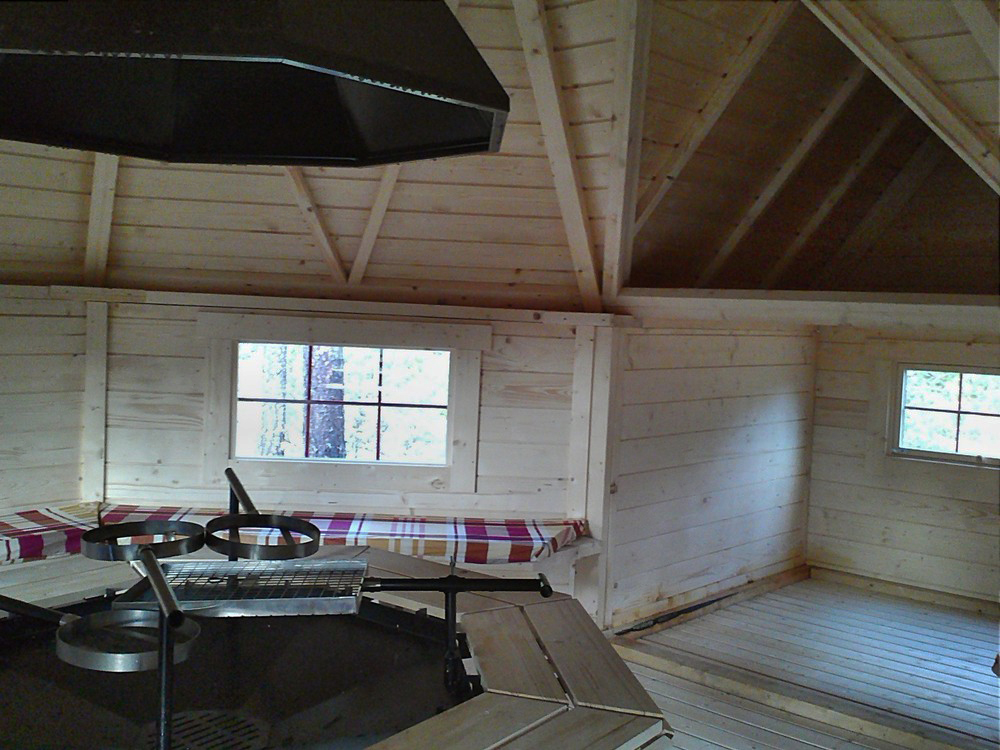

There is a convenient wood- or charcoal-fired grill with a table around it inside the cabin. Also, one adjustable cooking platform and two special platforms for a kettle, frying pan, etc. can be found. Above the grill, there is an adjustable hexagonal chimney. Finally, a cabin is lockable, and there is a small porch with a roof at the entrance.

Grill Cabin 9.2 m² with extension is delivered to the customer fully complete, with detailed assembly instructions and drawings, and packed on a pallet (KIT). Two people can easily assemble Grill Cabin in 7 hours.

Size of the cargo (L x W x H): 2.4 x 1.2 x 2.5 m + 2 x 1.2 x 2 m, total weight: 1600 kg.



Available roof colours:

USAGE

The surfaces of the new product that are in direct contact with the flames may create smoky smell while warming up using your grill for the first time. We advise to keep the door open during the first usage and not to cook until the smell has cleared. All metal grill details are covered with Temal 400 paints. The paint does not consist of unhealthy compounds and no chemicals hazardous to health are released during heating. It also bears dry heat up to 400 degrees centigrade. Some splitting and burning of the paint are normal because, in the long run, the paint does not bear the heat of the flames.
Please note, that the grill may have sharp edges and the steel parts of the grill heat up when the fire is firing, therefore they are a risk to harm or burn yourself. We suggest using natural materials, starter cubes or a little lighter fluid with small dry birch logs for lighting the fire. To make a fire lighting more easier and to ensure that the grill is getting enough air, open the damper and keep the door open as well.

The bigger logs can be added when the fire is burning well. Choose a non-sparking wood type; avoid using spruce or aspen and wood covered with bark. We advise using logs with max length 300 mm. To get good ember we advise adding some charcoal as well. In order to achieve optimal ember, regulate the ventilation with opening and closing the damper. Sufficient fresh airflow is the most essential aspect of smoke exhaustion. At least as much fresh air should come in as goes out with the smoke. If the grill is smoking open the door of the cabin and make sure that the wood is dry or not bark covered. Provide additional dry wood if needed. Remove coals and ashes from the fireplace after they have cooled down.

MAINTENANCE

You should not forget that wood is a natural material, it changes move depending on weather conditions. Large and small cracks, colour tone differences and changes, as well as a changing structure of wood are not errors, but a result of wood growing and a feature of wood as a natural material. Natural wood (not impregnated) becomes greyish after having been left untouched for a while and can be turned blue and become mouldy. You should immediately process them with wood impregnations to protect the wooden details of our produced products.

We definitely recommend that you process the door and windows with a wood impregnation agent, and do it namely both inside and outside, because the doors and windows can become twisted. In general, we recommend for the conclusive finishing a weather protection paint that will protect the wood from moisture and UV radiation after the house is assembled. Consult a specialist regarding paints suitable for unprocessed softwood and follow the paint manufacturer’s instructions. Your grill cabin lifetime will be much longer after having properly painted. We recommend that you inspect the house thoroughly once every six months.
