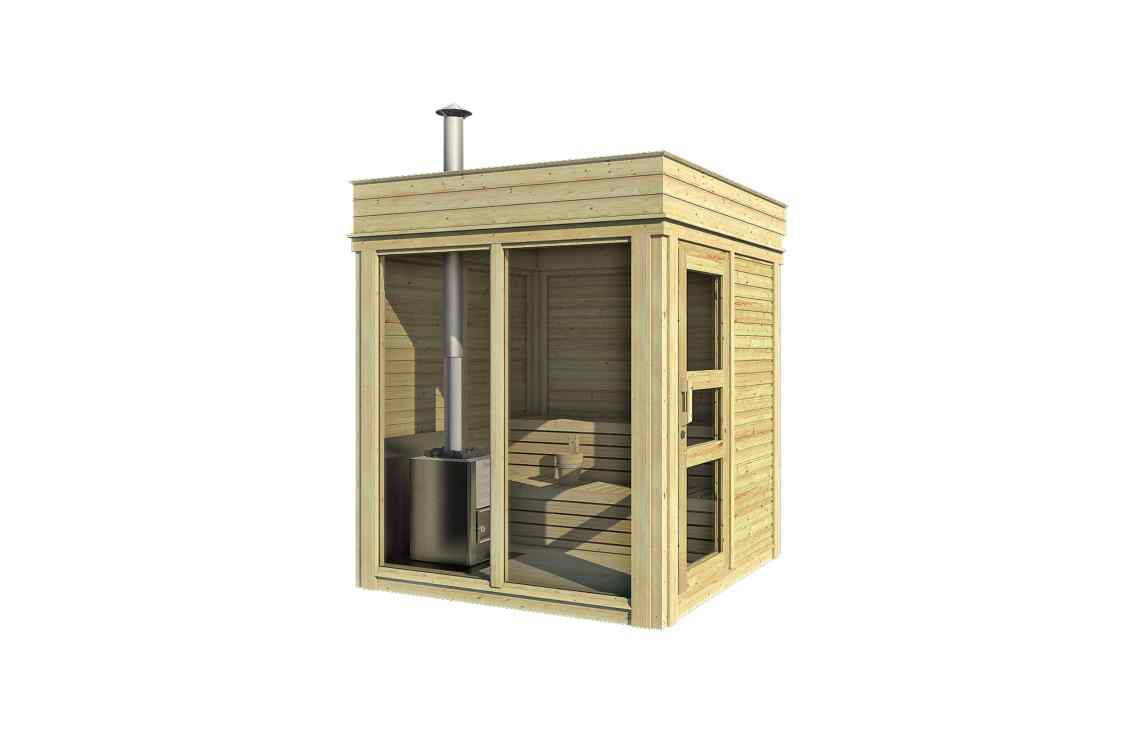

Sauna Cube 2×2
Shape: 4 corners Total height 2.78m
- Sauna benches;
- Wooden door with windows.
- 5 insulated full panel walls;
- Garden cube frame from spruce
- Wooden floor
- 2 Wooden tempered glass walls
- 2 Insulated roof panels
- Roof covered with bitumen weld coating
- Heat -resistant plates for the heater/stove
The frames are made from glue laminated spruce beams. Frame consists of bottom frame (140 x 100 mm), columns (140 x 140 mm), top frame (140 x 240 mm) and withstands 470 kg/m² roof load.
The 1000 x 2200 mm walls are made of spruce wood from FSC-certified spruce forests of Northern Europe. The light, golden-white spruce are ideal for Cubes constructions designs.
Insulated full panel wall. Wall frame 75 x 45 mm, panel covered with inside 96 x 12 mm and outside 145 x 18 mm horizontal spruce cladding boards.
Wooden tempered glass wall. Wall frame 75 x 45 mm with full tempered glass window.
The roof panels are built with double rafters construction and covered with 18 x 145 mm finishing boards. This construction withstands 442 kg/m2. All Garden Cube buildings roof are 2.7 m high and 1.310 (2.29%) slope.
We use an hydro-insulating SBS to ensure the highest level of waterproofing. MIDA UNIFLEKS – modified bitumen weld coating. It is produced in two types: surfaced with quartz sand – for the bottom layer of the roofing and surfaced with slate that ensures perfect UV-protection – for the top hydro-insulating protective layer of the roofing for Cube roofs.
Service life of MIDA UNIFLEKS roofing is 30-40 years. This is the most popular solution for a living roofs.
The doors used in Saun Cubes come in spruce wood doors with tempered glass windows. 817 x 2035 mm wooden doors with large tempered glass windows.

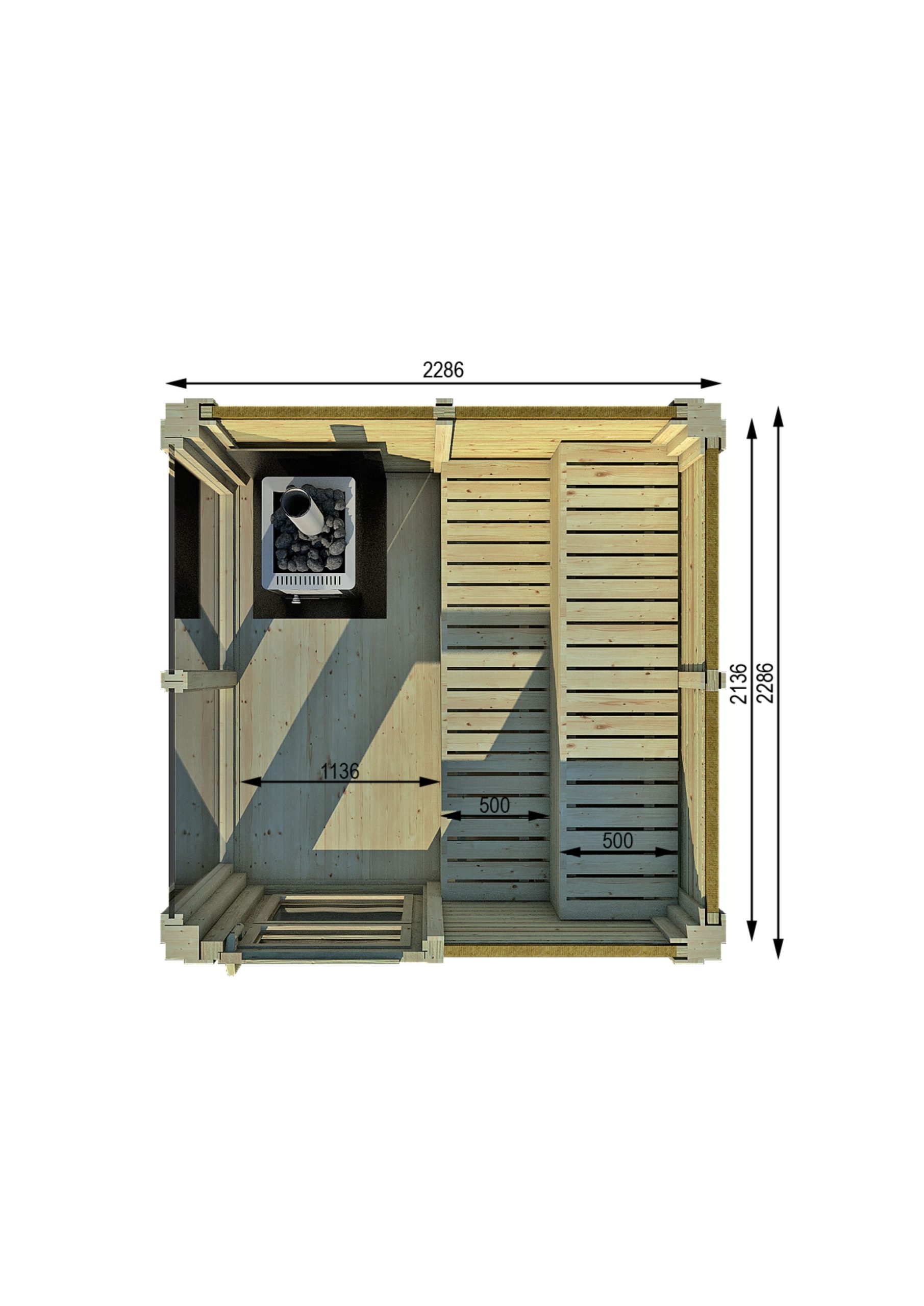

2 sauna benches 500 x 2136 mm (WxL) is made from deciduous wood; Sauna room volume is 17 m3. The door of sauna is 819 x 2032 mm (from spruce) with large tempered glass windows and lock.
THE RAINWATER PIPES
The rainwater pipe package includes 4 m straight gutter and all parts needed for installation.
Down pipe package includes 2.5 m down pipe and all parts needed for installation.
No need for exact measurements and calculations and easy to transport and install, as all components needed are packaged compactly in a single package, ensuring safe delivery and easy installation.
